Waterjet Cuting
Accurate Cutting Service provides a cold cutting process with a waterjet system. This waterjet cutting machine is known for its high-pressure pump, which typically produces pressures ranging from 30,000 to 90,000 psi. Some systems can achieve pressures in excess of 100,000 psi. Waterjet cutting does not introduce heat, which means it avoids issues such as warping or hardening that can occur in thermally altered materials.
Curious to know how each component of a waterjet system contributes to this precision? Stay with us and explore more about waterjet cutting as you continue reading this article.

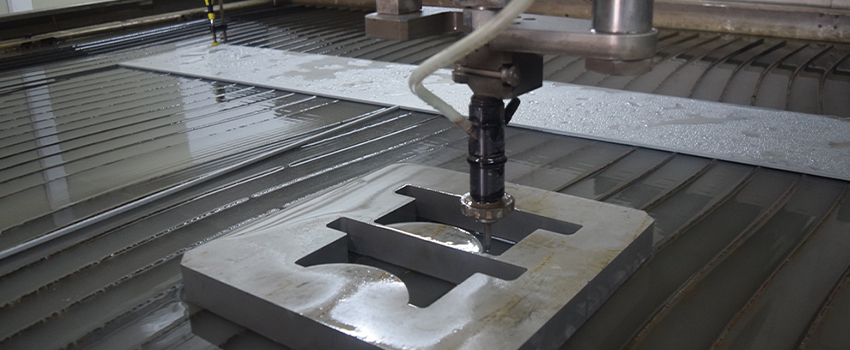

A Waterjet Cutting Machine is a powerful tool used to cut a wide variety of materials using a high-pressure stream of water. In some cases, the water is mixed with an abrasive substance like garnet to help cut through tougher materials such as metal, stone, or glass. This technology is based on a cold cutting process, meaning it doesn't use heat to cut, which helps prevent material warping or burning. This makes it ideal for precision work in industries like aerospace, automotive, construction, and even artwork and tile cutting. Thanks to the versatility of water jet cutting, it is commonly used in both industrial and residential settings.
A waterjet system is the entire setup that enables cutting through the use of high-pressure water. At its core, this system includes the pump that generates pressure, the piping to deliver the water, and the nozzle where the cutting happens. This system is designed to convert ordinary water into a cutting force strong enough to slice through inches-thick materials. Whether it's a simple shape or a complex design, the waterjet system ensures clean, smooth cuts without causing heat damage, thanks to its cold cutting process. This makes waterjet technology safe and efficient for materials that are sensitive to heat.

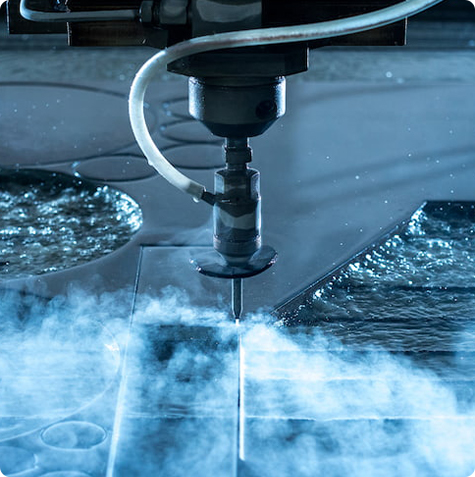

The waterjet nozzle is where the real action begins. This small but vital component focuses the high-pressure water into a narrow jet that cuts through the material. It typically includes a gemstone orifice made of sapphire, ruby, or diamond, which resists wear from the high-speed water. In abrasive water jet applications, this nozzle also mixes water with the abrasive material. It’s the precision of the waterjet nozzle that enables the waterjet cutting machine to create detailed patterns and sharp cuts. Without it, the water would lack the control and intensity needed for cutting.
The abrasive hopper stores and supplies the fine particles, usually garnet, used in the abrasive waterjet cutting process. When cutting hard materials like steel or granite, plain water isn’t enough. That’s where the abrasive comes in. The hopper carefully feeds abrasive material into the mixing chamber, where it combines with the water stream. This mix enhances the cutting power significantly. The hopper’s design ensures a consistent flow so that the water jet cutting maintains steady performance, making it a crucial part of high-precision and high-strength cutting jobs.

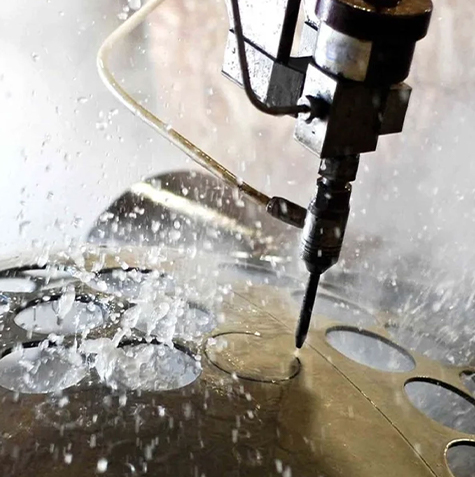

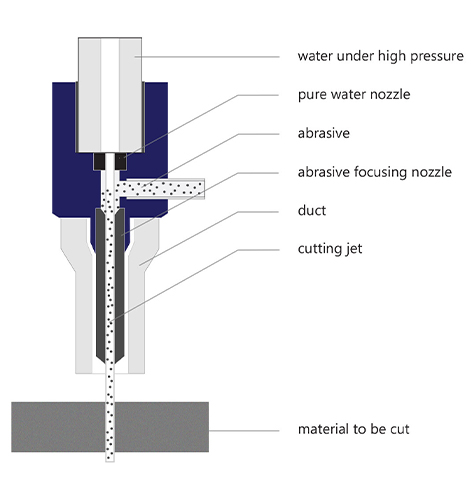

The cutting head, also known as the nozzle assembly, is the part of the waterjet cutting machine where water and abrasive meet and exit as a powerful cutting stream. Inside the head, the high-pressure water passes through the orifice, picks up the abrasive material, and then travels through the focusing tube to form a sharp jet. This is where the final mix of water and abrasive is directed at the workpiece. The nozzle assembly is built to withstand extreme wear and pressure, and its precision is essential for accurate, repeatable cuts across various water jet applications.
The motion system controls the path the cutting head takes over the material. It is typically made up of a computer-controlled gantry or robotic arm that moves the nozzle across X, Y, and sometimes Z axes. This allows the waterjet to follow complex shapes and patterns with pinpoint accuracy. The motion system is the brain of the operation in terms of movement. It ensures the waterjet cutting machine performs consistently, creating clean lines whether cutting metal sheets, tiles, or custom signage. Its accuracy is essential for any high-detail or custom work in water jet cutting.
The work table is where the material being cut is placed. It’s designed to support various materials without obstructing the waterjet. Most tables include a slatted surface or a water bath to minimize splash and absorb the force of the cutting jet. This area is engineered to reduce noise, capture debris, and help keep the cutting process clean. The work table may vary in size depending on the water jet application, from small-scale jobs to large industrial operations. A stable and well-structured work table ensures accurate, safe, and efficient cold cutting processes.
Positioned directly beneath the work table, the catcher tank plays a vital role in managing the spent water and abrasive. During the water jet cutting process, used water and abrasive material fall into this tank. It absorbs the energy of the cutting stream and reduces splash-back and noise. Some tanks come with features to help settle and separate the abrasive from the water, making it easier to recycle or dispose of. This component is especially important for maintaining a clean and environmentally-friendly workspace in any waterjet operation.
The control system is the digital brain behind the waterjet cutting machine. It consists of a CNC (Computer Numerical Control) unit that reads the design files and translates them into precise cutting paths. Operators can input patterns, adjust speed, control water pressure, and monitor the process through a user-friendly interface. With the control system, complex shapes and fine details can be executed with ease. It plays a crucial role in the cold cutting process, allowing for accuracy and repeatability in various water jet applications, from metal art to industrial component fabrication.
To make the waterjet process more sustainable, many setups include a water filtration and recycling system. After the cutting is done, the used water flows into this system where contaminants and abrasive particles are filtered out. The cleaned water can then be reused in the cutting process. This reduces water waste and operational costs, making the water jet cutting machine more environmentally friendly. Such systems are especially useful in industries with high production volumes, helping to maintain a clean cold cutting process without compromising performance.
Safety is a top priority in any cutting process, and safety enclosures and sensors are vital components of a waterjet cutting machine. Enclosures protect the operator from high-pressure spray and flying debris. Sensors detect abnormal pressure levels, leaks, or motion issues, and can shut down the system automatically in case of a problem. These features not only ensure the safety of personnel but also extend the life of the machine by preventing accidental damage. With advanced safety integrations, waterjet machines offer secure and reliable cold cutting operations across all applications.
One of the best benefits of using a waterjet cutting machine is the high-quality edge finish it produces. Because waterjet cutting uses a cold cutting process without heat, it doesn’t burn or melt the edges of the material. This means you get smooth, clean edges right from the start, reducing or even eliminating the need for additional finishing work. Whether you’re cutting metals, glass, or stone, the water jet cutting process preserves the material’s integrity and appearance, resulting in precise, professional-looking parts every time.
Waterjet cutting is a cost-effective cutting solution that maximizes efficiency in production. It requires minimal setup time, and because there’s no heat-affected zone, materials aren’t wasted due to warping or distortion. This reduces scrap and rework, saving both time and money. Additionally, water jet cutting machines can cut multiple materials without needing different tools or expensive adjustments, which further lowers operational costs. Overall, waterjet cutting offers a reliable way to get precise cuts quickly and efficiently, helping businesses improve their bottom line.

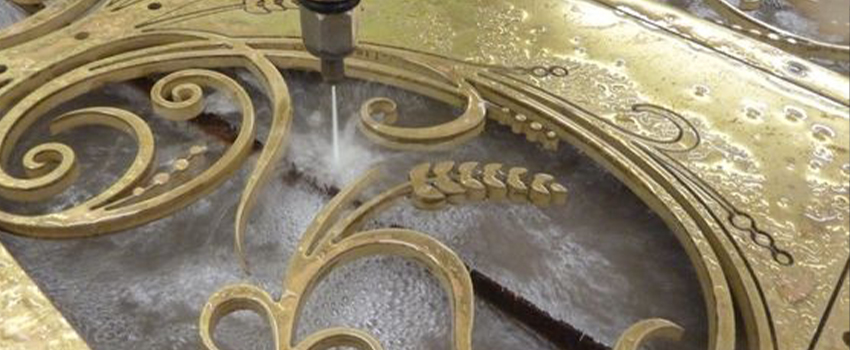

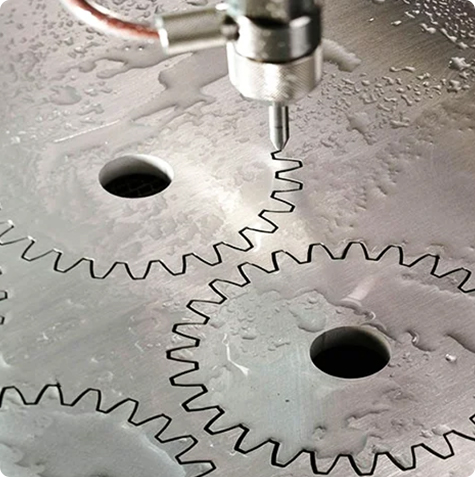

When it comes to cutting intricate shapes or complex internal features, waterjet cutting excels with advanced accuracy. The waterjet machine can follow tight curves and fine details with remarkable precision, making it ideal for parts that require exact dimensions. Unlike some cutting methods, the water jet cutting machine doesn’t cause any heat distortion, so the internal geometry stays true to the design. This accuracy is especially valuable in industries like aerospace, automotive, and engineering where precision is critical.
A standout benefit of water jet cutting is its unrestricted ability to cut any material, regardless of thickness. From soft materials like rubber and foam to extremely hard metals, stone, and composites, waterjet cutting can handle them all. Plus, it can cut thick materials that other cutting methods struggle with, without losing precision. This versatility makes water jet cutting a one-stop solution for a variety of projects, eliminating the need to switch between different cutting technologies and helping businesses tackle diverse water jet applications easily.
Waterjet cutting is a cold cutting process, meaning it uses high-pressure water instead of heat to cut materials. This has a huge advantage because the material being cut does not experience any thermal distortion, warping, or weakening. This is especially important for heat-sensitive materials like plastics, composites, or thin metals. Since the water jet cutting machine does not generate heat, it preserves the physical properties of the material, ensuring the final product maintains its strength, durability, and appearance.
Waterjet cutting machines offer the benefit of continuous operation without frequent tool changes. Unlike traditional cutting tools, waterjet cutting doesn’t rely on blades or bits that wear out quickly. The water jet cutting machine can run for long hours, cutting different materials simply by adjusting the abrasive feed or pressure settings. This leads to less downtime, increased productivity, and smoother workflow. For businesses, this means faster turnaround times and the ability to handle large volume cutting jobs efficiently without constant maintenance interruptions.
A Waterjet Cutting Machine is renowned for its versatility, capable of slicing through a vast array of materials with precision and without the use of heat. This cold cutting process ensures that the integrity of the material remains uncompromised, making it ideal for various applications across multiple industries.
Waterjet cutting is highly effective for metals, including:
The absence of heat in the cutting process prevents any thermal distortion, ensuring clean and precise cuts, which is particularly beneficial for industries like aerospace and automotive.
Composite materials such as fiberglass, carbon fiber, and phenolic composites can be efficiently cut using waterjet technology. The precision of waterjet cutting ensures that these materials are not delaminated or damaged during the process.
Waterjet machines can effortlessly cut through various stones and tiles, including:
This capability is particularly useful for creating intricate designs in architectural applications.
From standard to bulletproof glass, waterjet cutting provides a clean and precise method for shaping glass without the risk of cracking or shattering, which is common with traditional cutting methods.
Waterjet cutting is suitable for various plastics and rubber materials, including:
The cold cutting process ensures that there is no melting or burning, resulting in clean edges.
Softwoods, hardwoods, and foam materials can be precisely cut using waterjet technology. This is particularly beneficial for creating detailed patterns in furniture design or packaging materials.
Waterjet cutting offers a precise and clean method for cutting textiles and leather, making it ideal for fashion and upholstery industries.
In the food industry, waterjet cutting is used for slicing products like meats, vegetables, and baked goods. The hygienic nature of the process, due to the absence of blades, reduces the risk of contamination.
The adaptability of waterjet cutting machines across such a diverse range of materials underscores their value in modern manufacturing and design processes. Whether it's for intricate designs or heavy-duty industrial applications, the cold cutting process of waterjet technology ensures precision and quality without compromising the material's integrity.
When it comes to precision cutting, choosing the right method can make all the difference. Traditional cutting techniques like plasma, laser, or mechanical tools often rely on heat or physical force, which can alter the material's properties, cause rough edges, or require secondary finishing. On the other hand, water jet cutting uses high-pressure water (sometimes with abrasive particles) to slice through a wide range of materials—without introducing heat.
This cold-cutting process prevents warping, burning, or structural changes in the material, making it ideal for delicate or high-performance parts. Traditional tools also typically require frequent tool changes depending on the material, while waterjet systems can handle metal, stone, glass, composites, and even rubber in one go—no tool change required.
In short, water jet cutting offers superior edge quality, material flexibility, and a safer, cleaner process, especially for projects where precision and finish matter most. Whether you're working on industrial components or artistic designs, water jet cutting simply outperforms traditional methods in versatility and results.
Waterjet Cutting Solutions can be used on a wide range of materials, making it a convenient choice for a variety of industries. It can easily cut metals, plastics, glass, stone and composites. Waterjet cutting is a more environmentally friendly option compared to other cutting technologies, as it produces less hazardous waste and uses water as the primary cutting medium. Advanced Waterjet Technology can lead to improved productivity, quality and competitive advantage. For any inquiries regarding Waterjet Cutting Machine, please contact us at +91-9979228016 or email us at acs.cutting@gmail.com
India’s industries prefer waterjet cutting machines because they deliver precise, clean cuts without using heat. This cold cutting process avoids material damage and reduces the need for secondary processing. It’s reliable, versatile, and ideal for everything from automotive to architectural work.
Waterjet machines can cut at speeds up to several hundred inches per minute, depending on the material and thickness. Even at high speeds, they maintain excellent accuracy—typically within ±0.1 mm. That makes them perfect for detailed and complex cutting jobs.
A waterjet can cut virtually any material thickness, from very thin sheets to metals over 150 mm thick. The ability to handle both soft and hard materials without heat makes it incredibly flexible for various water jet applications.
Unlike laser or plasma cutting, waterjet uses a cold cutting process, meaning no heat-affected zones or warping. It can cut any material—metal, glass, stone, or foam—with exceptional edge quality. This makes it a safer, cleaner, and more material-friendly solution.
Yes, waterjet cutting works on nearly all materials: metal, rubber, stone, plastic, composites, and more. However, it may not be the best choice for highly absorbent materials like certain sponges or extremely brittle ones. Still, its versatility covers 95% of industrial needs.
Accurate Cutting Services offers industry-leading waterjet cutting with state-of-the-art machines and expert technicians. They handle complex designs with precision, delivering clean results every time. Whether for small residential jobs or large industrial work, their reliability and service stand out.
